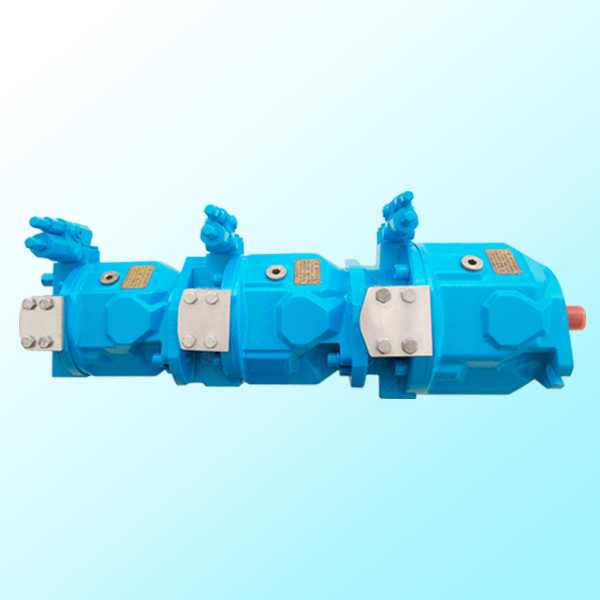

CJA10VSO series ram pumps

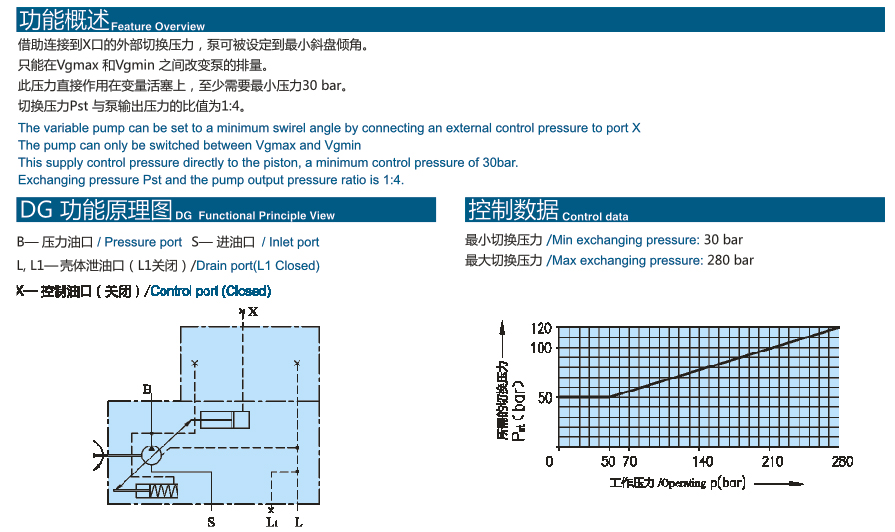

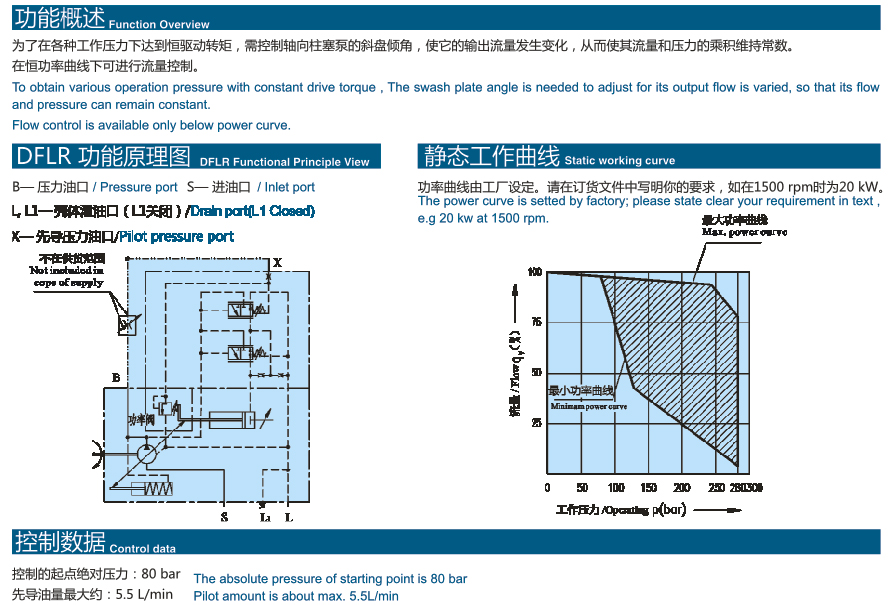

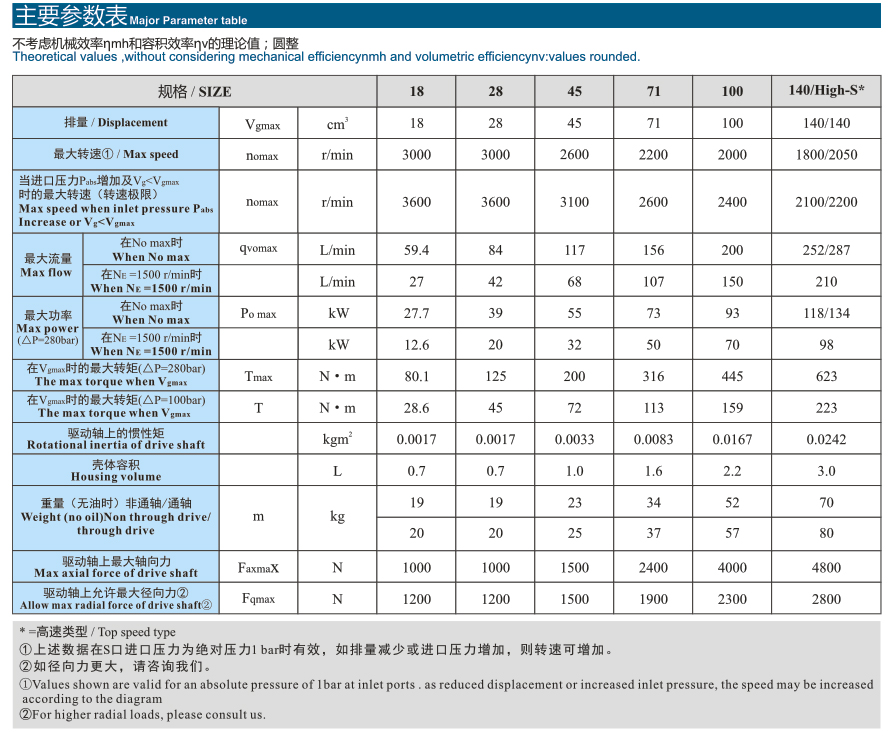

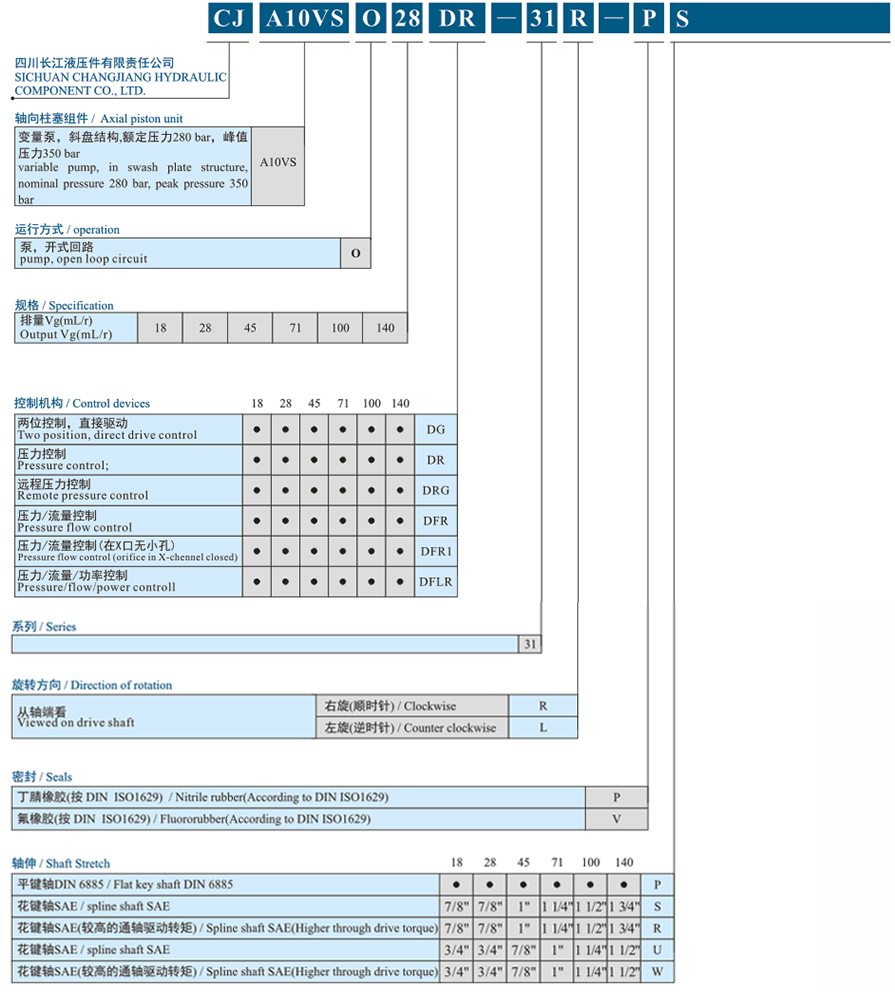

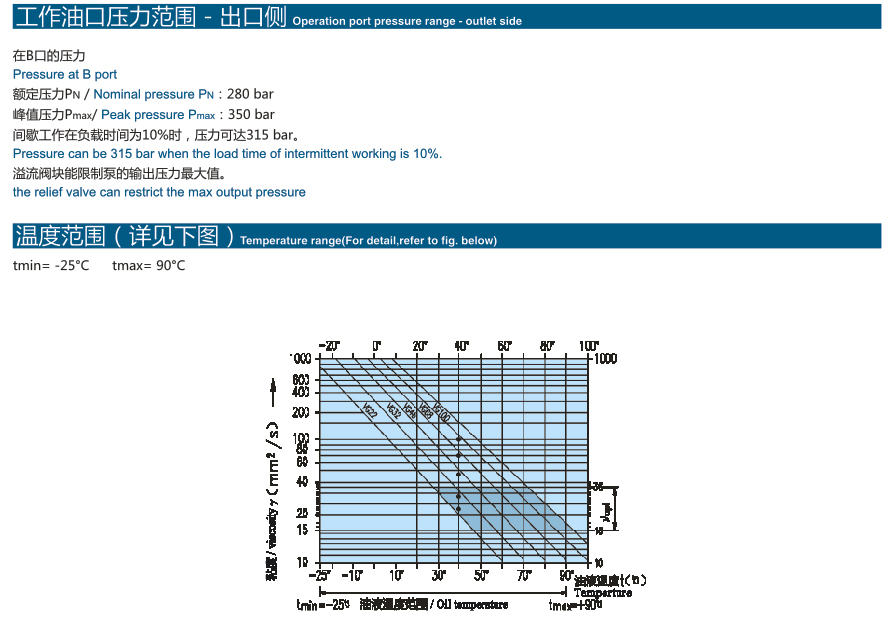

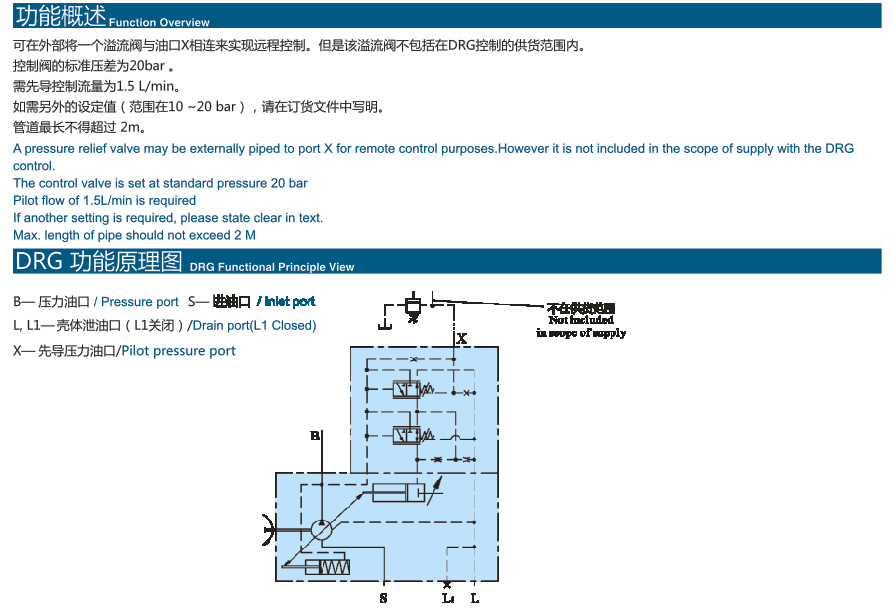

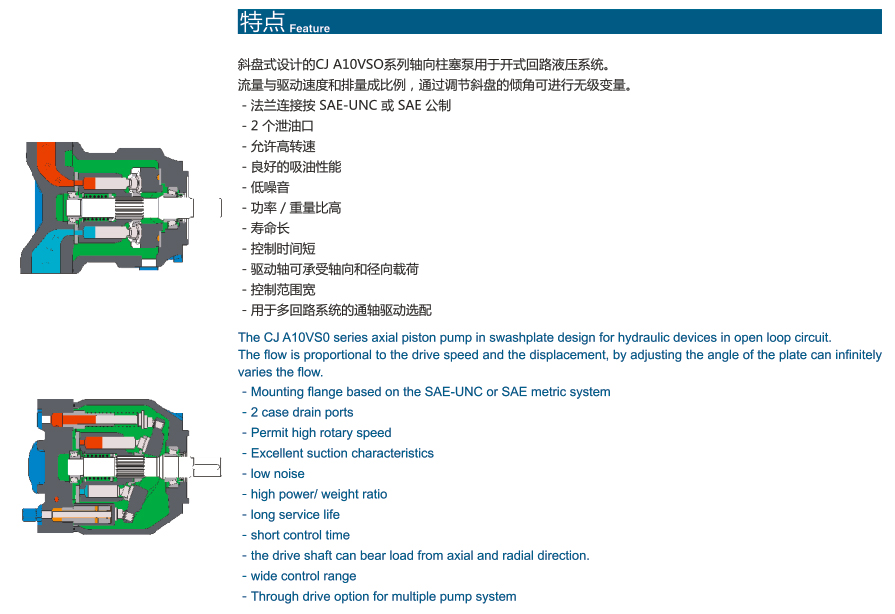

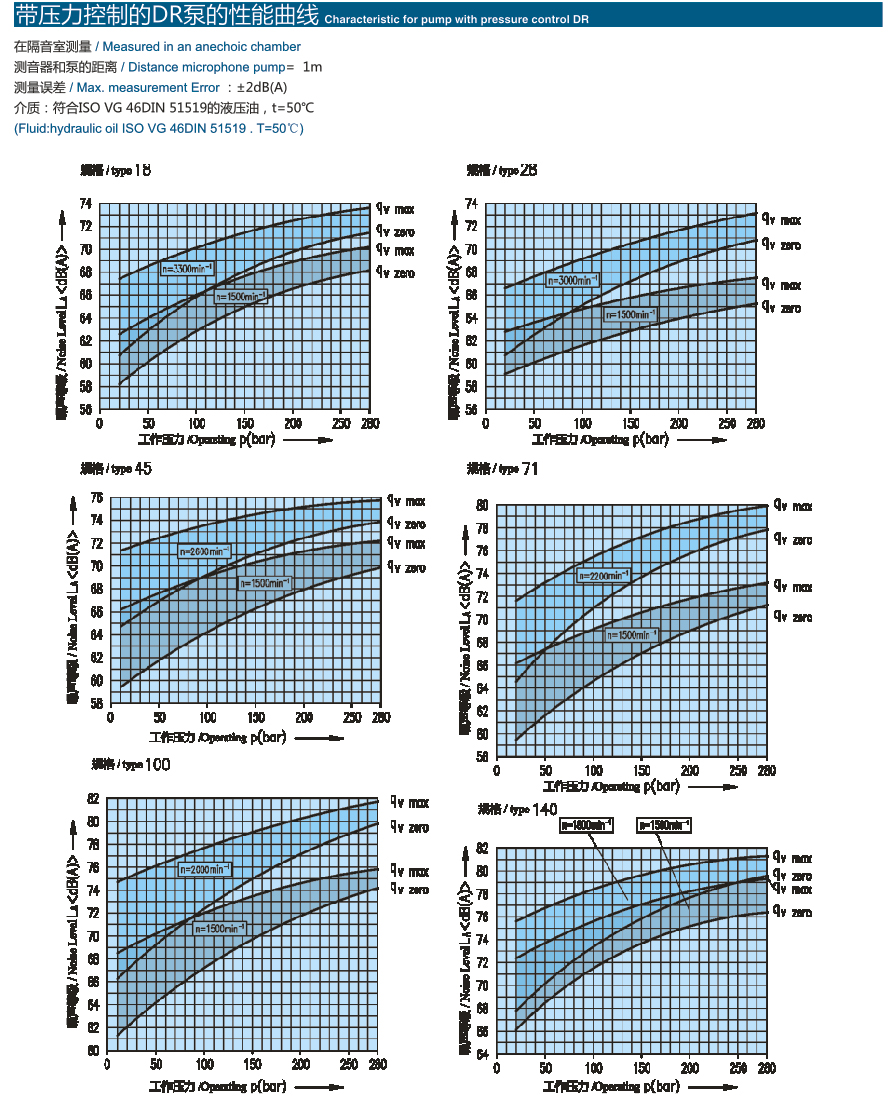

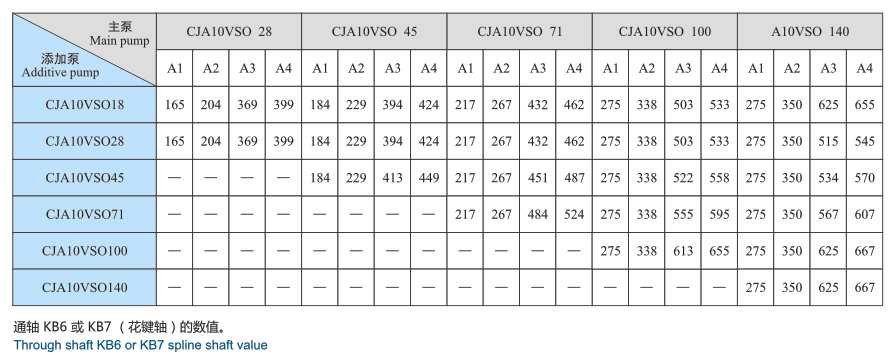

CJA10VSO series ram pumps adopt swashplate structure for variable ram pumps in open circuit. They have the advantages of fast response, low noise, high power density and long life, and have many control modes, such as pressure compensation, remote pressure, load sensitivity, constant torque, electronic proportional control and so on. They can be connected with other pumps in series. The rated pressure is 28MPa, the peak pressure is 35MPa, and the output volume is 28 to 140ml/r. Series gear pumps are used as pilot or auxiliary pumps, completely replacing imported components, widely used in construction machinery, plastic machinery, heavy equipment, mining equipment, metallurgy, water conservancy, ships, machine tools and so on.
